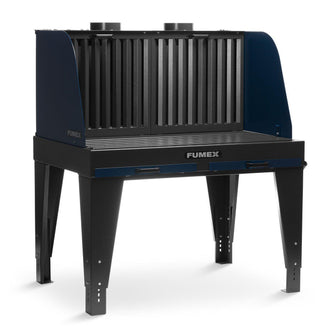

Industrial table with efficient extraction for grinding & welding

TWG is an industrial welding and grinding table for handling smoke, dust and particles during welding and grinding work. Extraction in both the back panel and the work surface removes harmful substances directly from the breathing zone. The tables are connected to a separate fan or existing fan system.
Removable dust trays under the work surface catch the dust. The work surface is loose and easy to lift out for cleaning.

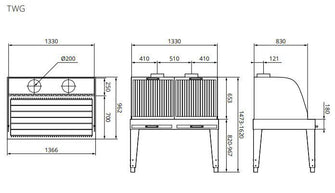

The working surface is 1370x700 mm and the working height can be adjusted.

Openable side panels enable easy adaptation based on the needs of the workplace.

There are two dampers on the back panel that make it easy to control and optimize the air flow to the back panel. Double Ø200 mm pipe connections on the upper side of the tables ensure that the air flow is high, even at low pressure drop.
Bracket for welding gun on one short side.

The table is delivered partially assembled, for easy installation.
Max load work surface 150 Kg
