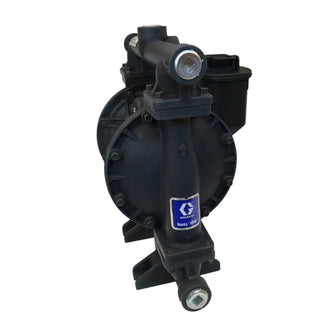

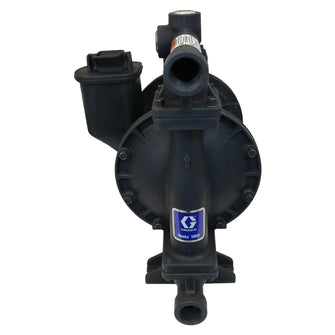

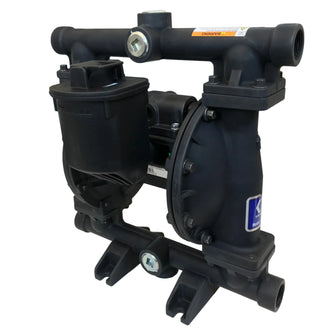

Diaphragm pump 1" Husky Alu/hytrel
Art. no. 647016
Translation missing: en.ordered_to_warehouse
Regular price
11 630 kr
About the product
Diaphragm pump with pressure ratio 1:1 for transfer of liquids compatible with the material in the pumps. High quality regarding components to ensure that they have a reliable function even under extreme conditions.
| Product details | |
|---|---|
| For Liquids | Water, Degreasing Petroleum, Diesel, Glycol, Oil, Waste oil, Washer fluid |
| More Liquids | Vegetable oil |
| Model | Diaphragm pump |
| Power source | Compressed air |
| Ex Classification | II2 GD c IIB T4 X (zone 1) |
| Pressure ratio | 1:1 |
| Capacity free outlet l/min | 189 litres/min |
| Max particle size | 3.2 mm |
| Suction height Dry Max | 4.9 m |
| Suction Height Wet Max | 8.8 m |
| Temperature Max | 65°C |
| Pressure Max | 7.0 bar |
| Membrane | Hytrel |
| Material pump body | Aluminum |
| Material wet parts | Aluminum |
| Inlet int. | NPT 1" |
| Outlet int. | NPT 1" |
| Width | 380 mm |
| Height | 410 mm |
| Keyword | Water pumps; 647016 |
| Sound level | 90dB |
