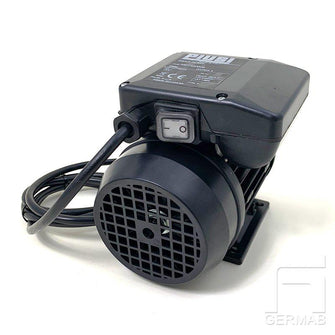

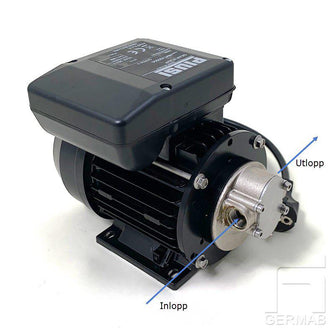

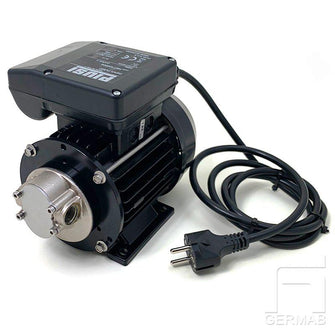

Gear pump 230V, for oil, water, glycol etc
Art. no. GARDA5-230V
In stock
Regular price
5 580 kr
About the product
Gear pump 230V for transfer of various media such as e.g. hydraulic and motor oils, water, glycol, diesel, etc. The pump is made of bronze with a stainless pump shaft and gears of bronze with PTFE coating. Max working pressure 3.5 bar. The pump is self-priming (approx. 1.3 m). Protection class IP 65. Weight 2.7 kg.
The pump lacks a bypass and must not be run towards a closed outlet.
*Capacity is with an engine oil 10W/30 at +25°C
| Product details | |
|---|---|
| For Liquids | Water, Diesel, Oil |
| Model | Gear pump |
| Power source | Electric engine |
| Capacity free outlet l/min | 10 litres/min |
| Viscosity Max | 85cSt |
| Voltage | 230 V |
| Power consumption | 1.8 Amp |
| Work pressure | 3.5 bar |
| Operating cycle | S1 - Continuous operation |
| Inlet int. | G 3/8" BSP |
| Outlet int. | G 3/8" BSP |

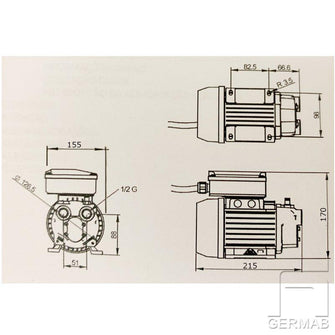

| Length | 185 mm |
| Width | 350 mm |
| Height | 260 mm |
| Weight | 6 kg |
| IP class | IP65 |
| Keyword | Diesel pumps; Glycol pumps; Oil pumps; Water pumps; GARDA5230V; GARDA5230V |
