Digital meter for liquids IG 1"
Art. no. UR-00407
In stock
Regular price
2 560 kr
About the product

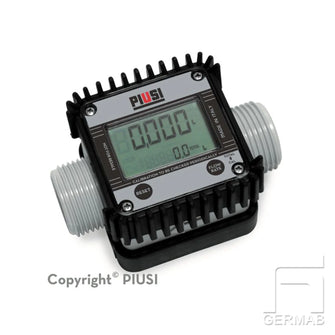

Electronic oval wheel gauge with LCD display, which can be rotated in four different positions, made of polyamide with oval wheels made of polypropylene intended for Urea/Adblue, water and washer fluid etc. The meter is calibratable. The meter can be mounted on a pipe or at a gun valve. Powered by 2 x 1.5 volt AAA batteries. Current and accumulated volume is displayed, resettable. Working temperature -10°C to 60°C. Connection threads ext. G1" incl. a sleeve IG 1”.
| Product details | |
|---|---|
| For Liquids | AdBlue/Urea, Washer fluid, Water |
| Model | Digital meter |
| Meter | Digital |
| Capacity free outlet l/min | 4-40 litres/min |
| Total display number of digits | 6 pcs, from 1-999,999 litres |
| Partial display number of digits | 5 pcs + 2 decimal places, from 0.1-99999 litres |
| Accuracy | +/- 1.0% |
| Inlet ext. | G 1" BSP |
| Outlet ext. | G 1" BSP |
| Pressure Max | 10 bars |
| Length | 100 mm |
| Width | 75 mm |
| Height | 55 mm |
| Weight | 0.4 kg |
| Keyword | Digital meters; UR-00407; UR00407 |
