Digital meter 10-90 l/min, EX for petrol
Art. no. PF-004EX
Ordered to vendor
Regular price
4 675 kr
About the product

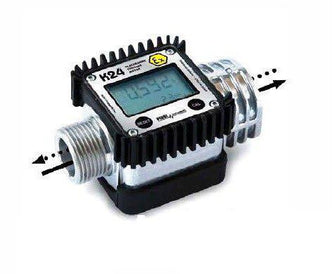

Electronic oval wheel gauge with LCD display, which can be rotated in four different positions. The body is made of aluminum. The meter is calibratable. The meter can be mounted on a pipe or gun valve. Powered by 2 AAA batteries. Current and accumulated volume is displayed, current volume can be reset. Working temperature -10°C to +50°C. Connection threads ext. G1" incl. a sleeve IG 1”.
- EX and ATEX certified.
| Product details | |
|---|---|
| For Liquids | Diesel, Petrol |
| Model | Digital meter |
| Meter | Digital |
| Capacity free outlet l/min | 7-120 litres/min |
| Total display number of digits | 6 pcs, from 1-999,999 litres |
| Partial display number of digits | 5 pcs + 2 decimal places, from 0.1-99999 litres |
| Accuracy | +/- 1.0% |
| Inlet ext. | G 1" BSP |
| Outlet ext. | G 1" BSP |
| Pressure Max | 20 bars |
| Length | 115 mm |
| Width | 160 mm |
| Height | 135 mm |
| Weight | 0.5 kg |
| Keyword | Digital meters; PF-004EX; PF004EX |
