The E300 is an electric pump for diesel transmission. The E300 diesel transfer pump has been developed and engineered by the Piusi team to be applied to all those applications that require high pressure for a large amount of diesel to be transferred. It is used in all industries where speed is required, and where you need to discharge large amounts of fuel in a short time. From mining to construction, automotive, transport, garages and agriculture, this open impeller electric pump for diesel transmission is the perfect solution if you are looking for a high performance product that is reliable over time.

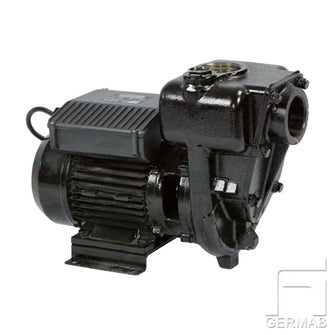

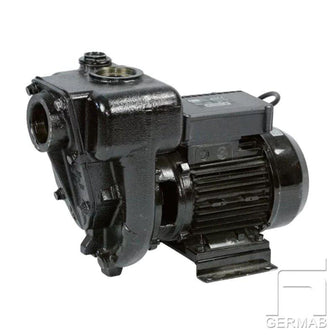

Diesel pump high flow E300 230V 550l/min
Art. no. PF-E300
Translation missing: en.ordered_to_warehouse
Regular price
12 400 kr
About the product
HIGH PERFORMANCE
With a flow rate of up to 550 l/min, the E300 diesel transfer pump with rotary pump is ideal for filling and transferring diesel from drums. The max. the working pressure is 1.8 bar and guarantees a high flow rate of the transferred diesel. The cast iron impeller makes the E300 electric pump reliable and durable, as it can handle high work rates. The continuous 230 V AC operation does not compromise the safety of the E300 electric pump, as the non-return valve built into the suction inlet prevents the siphon effect from occurring.
Supplied with 2 meter power cable and flange connections.
| Product details | |
|---|---|
| For Liquids | Diesel |
| Model | Impeller pump |
| Power source | Electric engine |
| Capacity free outlet l/min | 550 l/min |
| Voltage | 230 V |
| Effect | 1.5 kW |
| Power consumption | 9.2 Amp |
| Pressure Max | 1.8 bar |
| Operating cycle | S1 - Continuous operation |
| Connection thread int. | G 2" BSP |
| Connection thread ext. | G 2" BSP |
| Length | 342 mm |
| Width | 176 mm |
| Height | 230 mm |
| Weight | 15.6 kg |
| IP class | IP44 |
