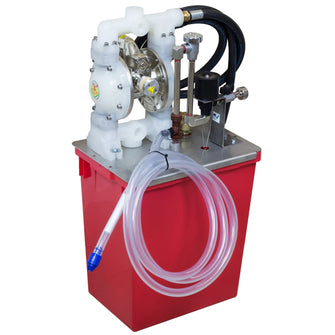

Mixture Ext. with diaphragm pump 25 lit/min
Art. no. GM-518
Translation missing: en.ordered_to_warehouse
Regular price
12 320 kr
About the product
The injector mixer is used for mixing different liquids, e.g. degreasing, microemulsions, glycol, washer fluid, etc. The injector is connected to the premises' water mains at the same time as the suction hose is connected to the mixing liquid. The ready-mixed liquid is collected in the tank which is equipped with level control, the tank holds approx. 25 litres. The diaphragm pump pumps away the ready-mixed liquid. The equipment is supplied with a 1.2 m suction hose with bottom valve and a 1.5 m outlet hose. The pump is about 25 cm high.
Mixture 0-50%
NOTE glycol max 35% admixture
| Product details | |
|---|---|
| Model | Mixing equipment |
| For Liquids | Degreasing Alkaline, Degreasing Petroleum, Glycol, Washer fluid, Water |
| More Liquids | Microemulsions |
| Equipped with | Bottom valve |
| Volume container | 25 L |
| Capacity free outlet l/stroke | 0.18 l/stroke |
| Mixing capacity | 25 l/min |
| Involvement % | 0-50% |
| Outlet hose | 1.5 m |
| Air consumption | 500 l/min |
| Suction hose | 1.2 m |
| Width | 400 mm |
| Depth | 270 mm |
| Height | 370 mm |
| Miscellaneous | The dimensions apply to the container |
| Volume range | 21-50 liters |
| Keyword | GM518; GM518 |
